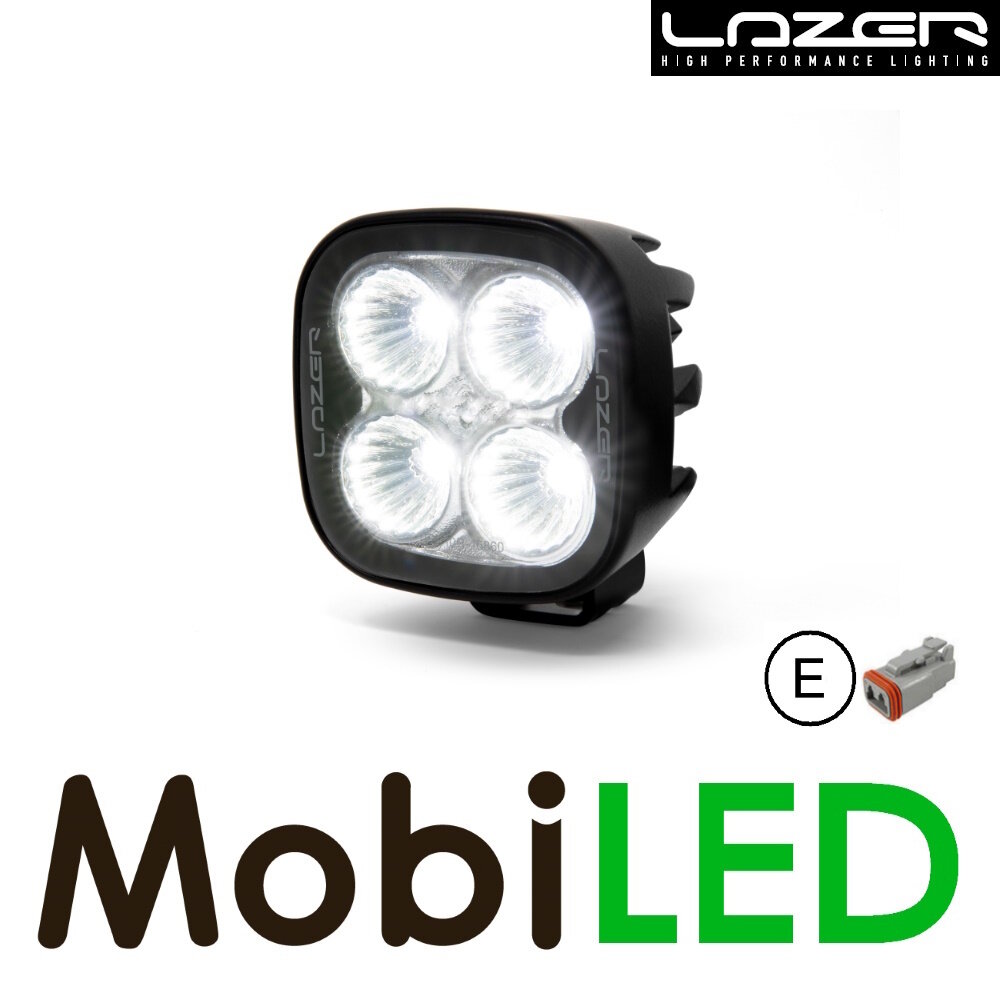

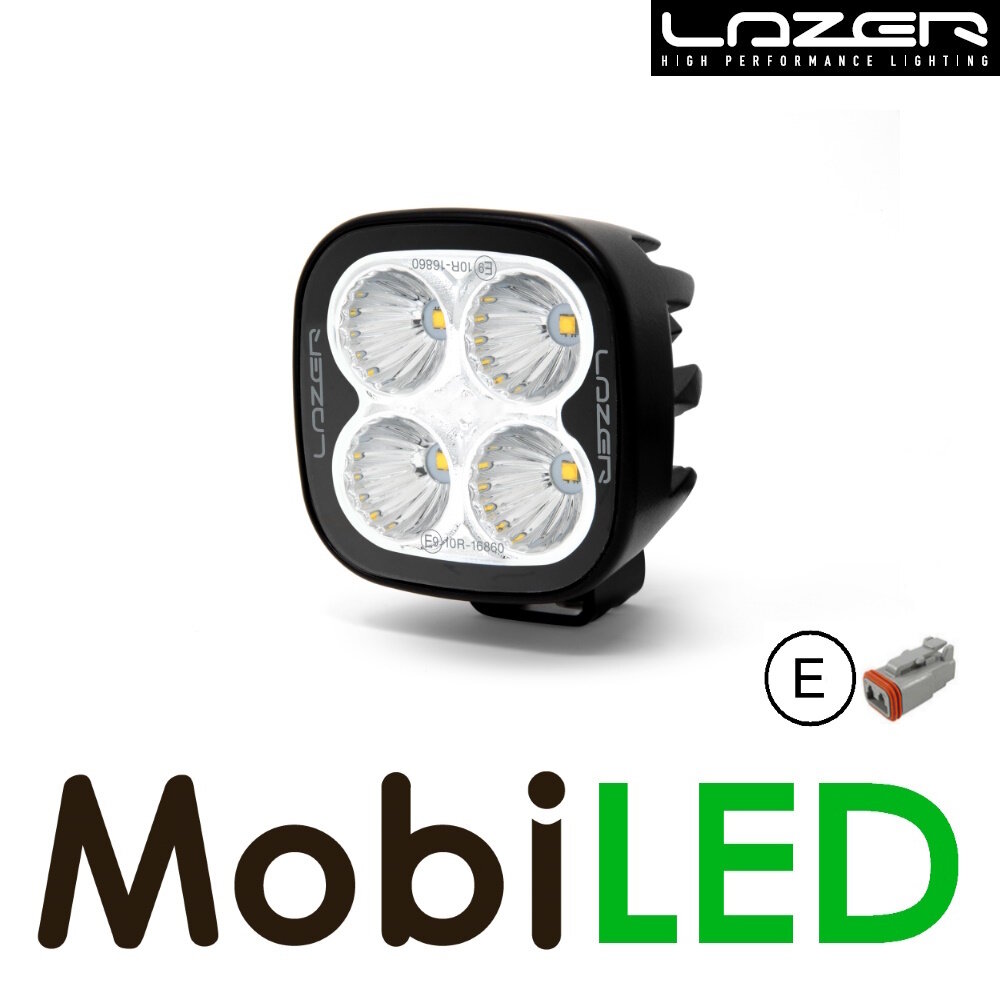

Utility work lamp 8 cm 25W
High-end product, designed, developed and produced in Great Britain.
The Utility 25 is a medium-duty work lamp, which provides a superior light image due to the latest developments in LED lighting, especially given its compact size. It is robust and built to provide a constant and reliable light output that is perfect for many applications and vehicles.
The lamp is small at only 8 x 8 cm. It uses highly efficient 6 watts LEDs from a world leader in LED design. The color temperature is carefully selected at 5000 Kelvin to maximize the sharpness and definition of the area, without causing tension or fatigue.

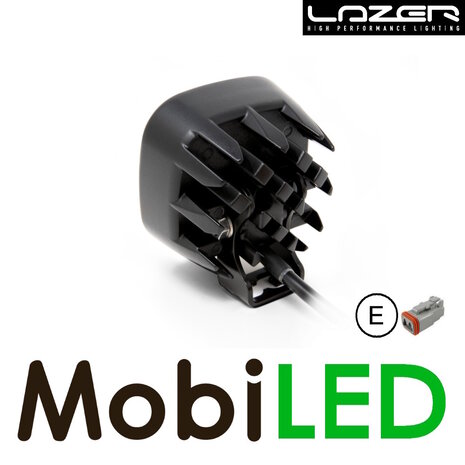

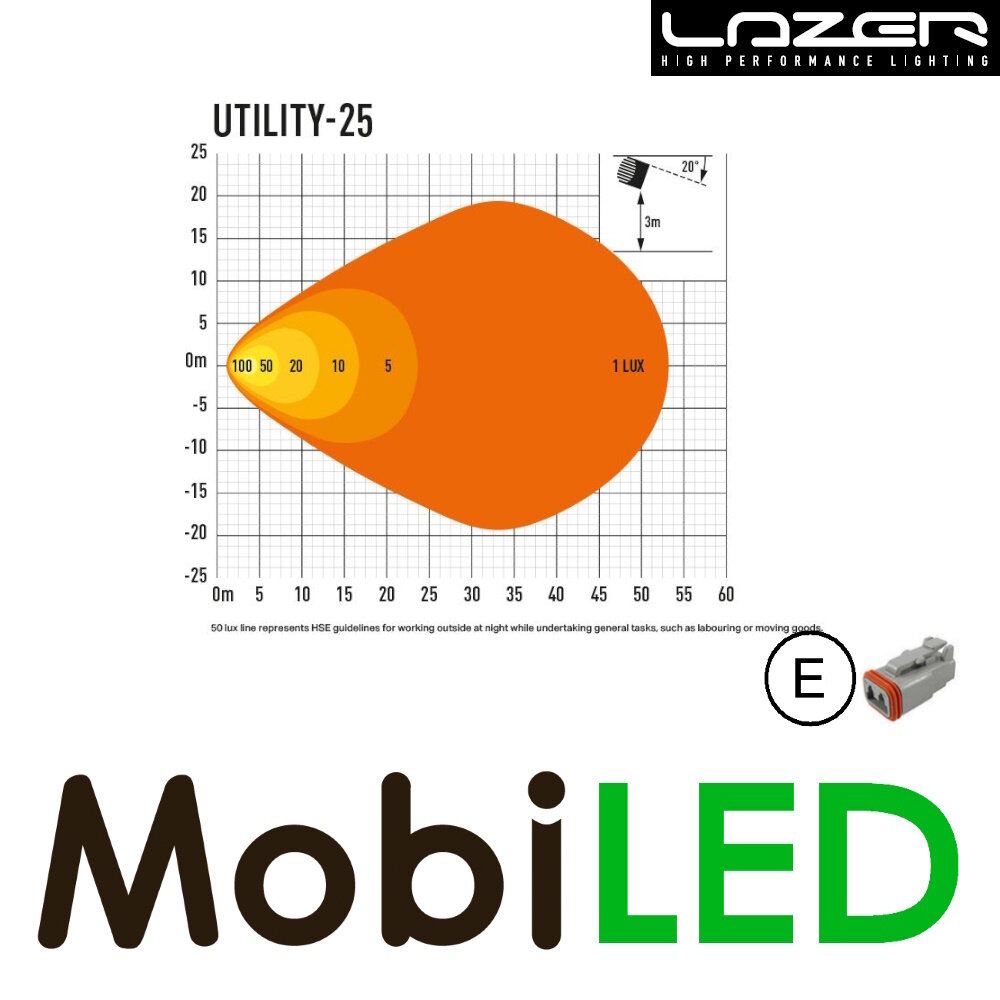

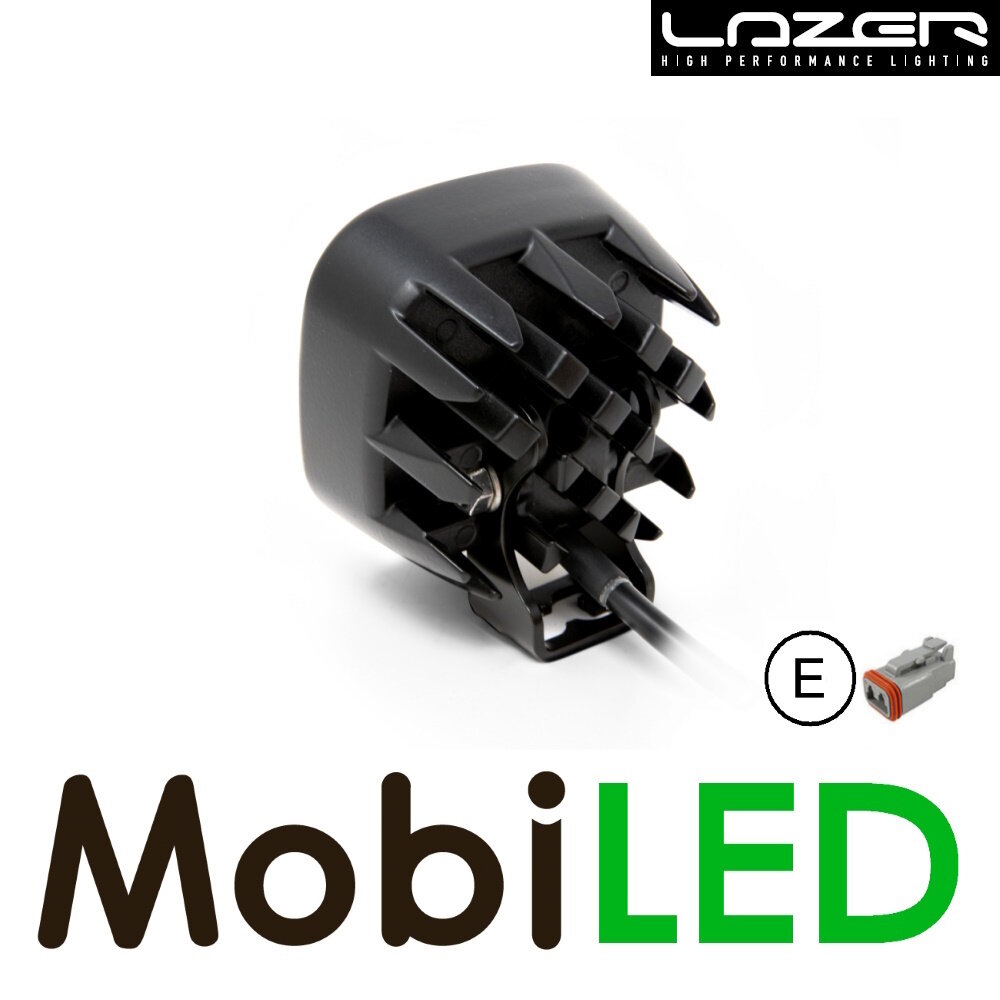

The vacuum metallized optic takes advantage of the 3,016 raw lumens and with a spread of 78 degrees. The high thermal conductivity of the Matrix cooling system maintains impressive lighting performance. The lamp can operate with a higher drive current, without compromising the life of the LEDs themselves.
The hard-coated polycarbonate lens is bonded to ensure water resistance to IP69K, while the lamps are tested to comply with EU regulations regarding vibration, shock and corrosion resistance. The advanced electronic design ensures complete EMC protection according to CISPR-25 (class 5). The lamp works on 9-32 volts, but class 5 only applies to 12 volts.

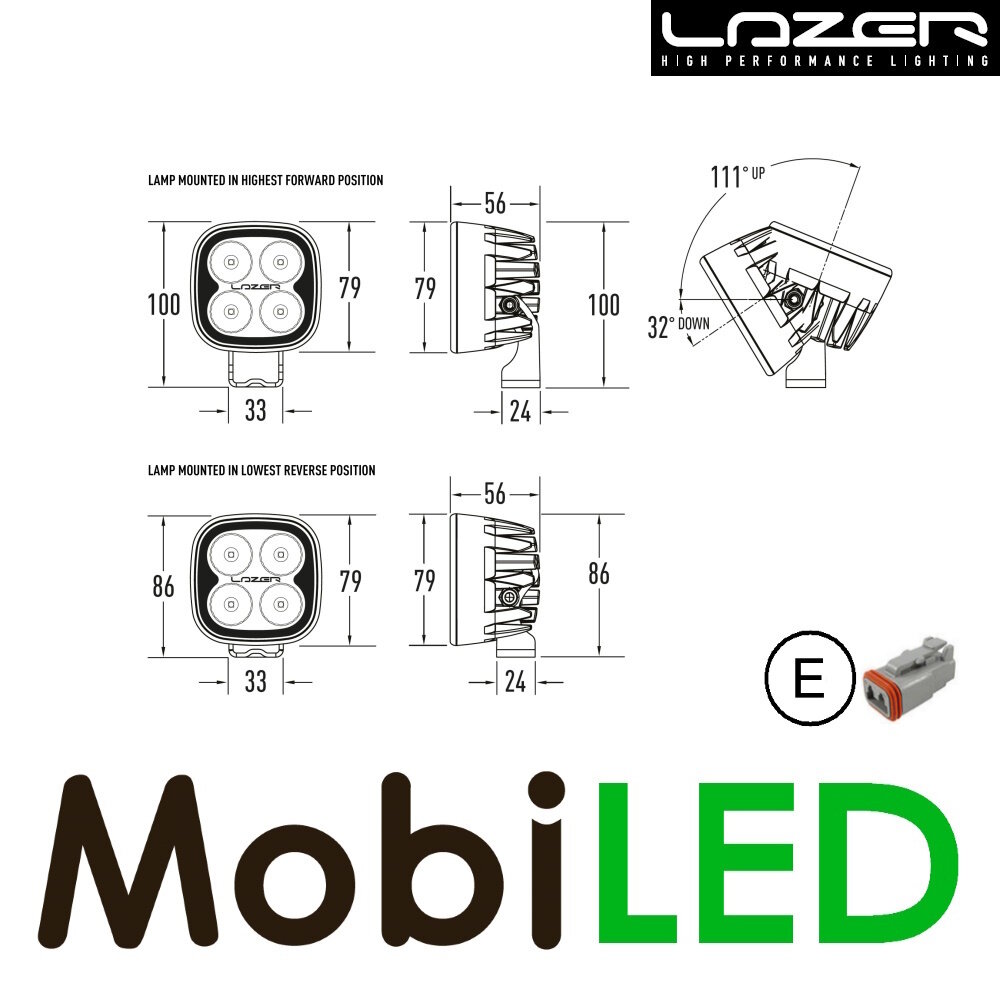

Supplied with male/female Deutsch connectors and ADR approved thanks to additional cable protection. It comes with a satin black lacquered stainless steel mounting system, of the same quality as the lamps themselves.
Due to the exceptional design of the lamps, your Utility product will impress.
Video:
Product specifications
- Article number
- WL290
- Length (cm)
- 7,9
- Height (cm)
- 7,9
- Depth (cm)
- 5,6
- Weight (gr)
- 360
- Shape
- Square
- Tension
- 10-32V
- Power
- 25W
- Current draw
- 14,4V: 1,6A
- Lumens
- 3016
- Light colour
- White
- Number of LEDs
- 4
- Housing material
- Aluminum
- Mounting bracket material
- Stainless steel
- Mounting type
- Bolt / bracket
- Connection
- Deutsch connector
- Flush-mounted / surface-mounted
- Surface-mount
- Certification
- E9, ECE R10, ADR
- IP rating
- IP67 & IP69K
- Packed per
- 1
- Manufacturer article number
- 00U25
